Kimsuk Steel
1 / 5
| Model | Capacity (KG/Layer) | Size (L*W*H) mm | Material Thickness |
|---|---|---|---|
| JS-L1242 | 100KG | 1200*400*2000 | Column/Beam 0.6mm; Layer 0.3mm |
| JS-L1252 | 1200*500*2000 | ||
| JS-L1542 | 1500*400*2000 | ||
| JS-L1552 | 1500*500*2000 | ||
| JS-M1062 | 200KG | 1075*600*2000 | Column/Beam 0.7mm; Layer 0.3mm |
| JS-M1542 | 1500*400*2000 | ||
| JS-M1242 | 1200*400*2000 | ||
| JS-M1262 | 1200*600*2000 | ||
| JS-M1552 | 1500*500*2000 | ||
| JS-M2042 | 2000*400*2000 | ||
| JS-M1562 | 200KG | 1500*600*2000 | |
| JS-M2052 | 2000*500*2000 | ||
| JS-M2062 | 2000*600*2000 | ||
| JS-M1562L | 300KG | 1500*600*2000 | Column/Beam 0.9mm; Layer 0.4mm |
| JS-M2062L | 2000*600*2000 | ||
| JS-H2062 | 500KG | 2000*600*2000 | Column/Beam 1.1mm; Layer 0.5mm |
| Layers: | 4 | ||
| Color: | Blue / Orange / Grey-white | ||

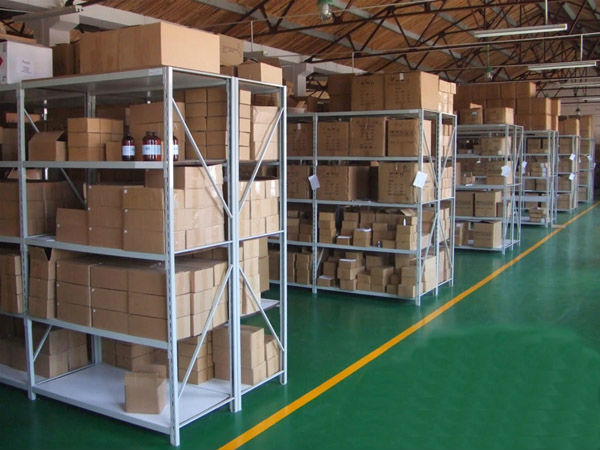

This racking system represents a highly economical and functional solution suitable for all kinds of storage and lightweight products. Designed with a wide variety of configurations, it allows easy adjustments to shelf heights, distribution layout, and weight levels. While commonly utilized in standard dimensions, this storage system can be readily adapted to specific dimensions requested by clients.
Our long span shelves are classified into light and medium duty structures. Standard capacity levels range from 100KG, 200KG, 300KG, up to 500KG per layer, depending on the model and material thickness configuration you select.
Yes. While our standard configurations include heights of 2000mm and lengths of 1200mm, 1500mm, and 2000mm, custom dimensions and alternative colors (standard options: Blue, Orange, Grey-white) can be tailored to meet your needs based on the volume of the order.
The system features a simple interlocking mechanism that allows for rapid assembly and disassembly. No complex tools are required, making it highly portable and adjustable for evolving warehouse configurations.
The shelving is manufactured using high-quality steel. Depending on the loading requirements, column/beam thicknesses range from 0.6mm to 1.1mm, and layer thicknesses range from 0.3mm to 0.5mm, ensuring durability and structural integrity.
Yes, the beam positions can be easily adjusted vertically. This allows you to accommodate items of varying sizes and maximize your overall vertical warehouse storage space.
It is highly suited for manually loaded boxes, larger packages, long pieces of material, and lightweight to medium-weight loose goods that require rapid and direct access.
