| Model | Capacity (KG/Layer) | Size (L*W*H) mm | Material Thickness |
|---|---|---|---|
| JS-L1242 | 100KG | 1200*400*2000 | Column/Beam 0.6mm; Layer 0.3mm |
| JS-L1252 | 1200*500*2000 | ||
| JS-L1542 | 1500*400*2000 | ||
| JS-L1552 | 1500*500*2000 | ||
| JS-M1062 | 200KG | 1075*600*2000 | Column/Beam 0.7mm; Layer 0.3mm |
| JS-M1542 | 1500*400*2000 | ||
| JS-M1242 | 1200*400*2000 | ||
| JS-M1262 | 1200*600*2000 | ||
| JS-M1552 | 1500*500*2000 | ||
| JS-M2042 | 2000*400*2000 | ||
| JS-M1562 | 1500*600*2000 | ||
| JS-M2052 | 2000*500*2000 | ||
| JS-M2062 | 2000*600*2000 | ||
| JS-M1562L | 300KG | 1500*600*2000 | Column/Beam 0.9mm; Layer 0.4mm |
| JS-M2062L | 2000*600*2000 | ||
| JS-H2062 | 500KG | 2000*600*2000 | Column/Beam 1.1mm; Layer 0.5mm |
| Layers: | 4 | ||
| Color: | Blue / Orange / Grey-white | ||
| Other size and color can be customized based on the quantity of order. | |||

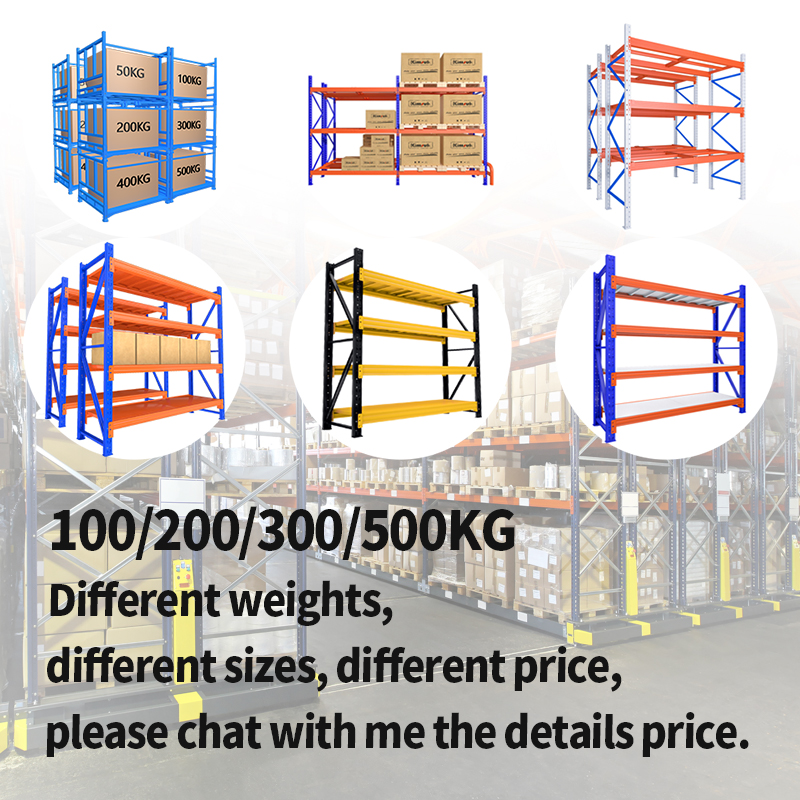

The system is categorized into different load classes: Light Duty (100KG per layer), Medium Duty (200KG to 300KG per layer), and Heavy Duty (up to 500KG per layer). The standard system comes with 4 adjustable layers.

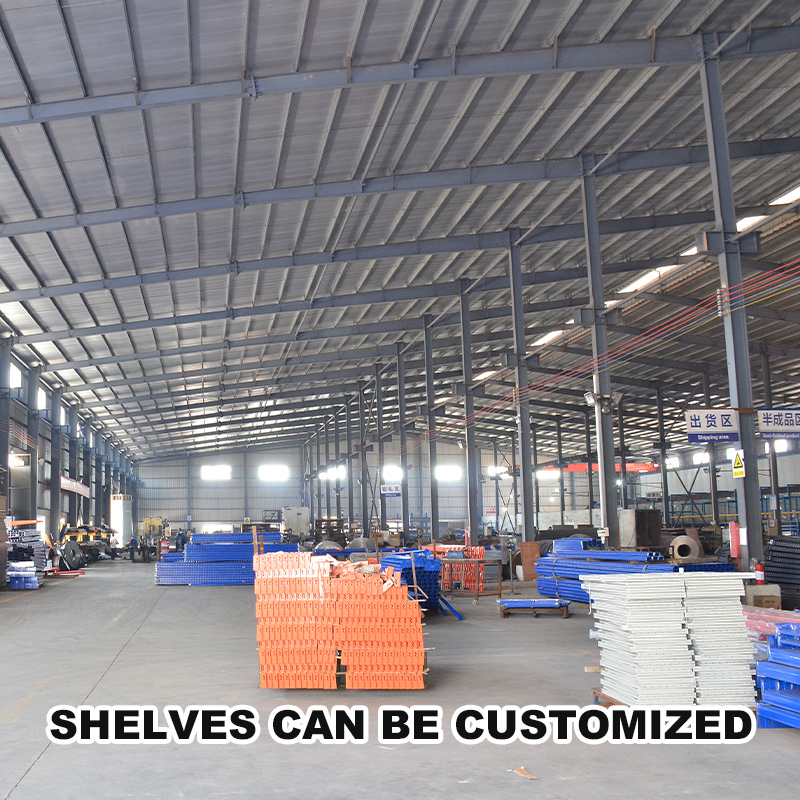

Yes, customized sizes and colors (besides our standard Blue, Orange, and Grey-white options) are available based on the quantity of your order.
Absolutely. Our long span shelving is specifically designed for easy assembly and dismantling. It requires minimal tools to install, making it easy to configure, adjust, or transport when needed.

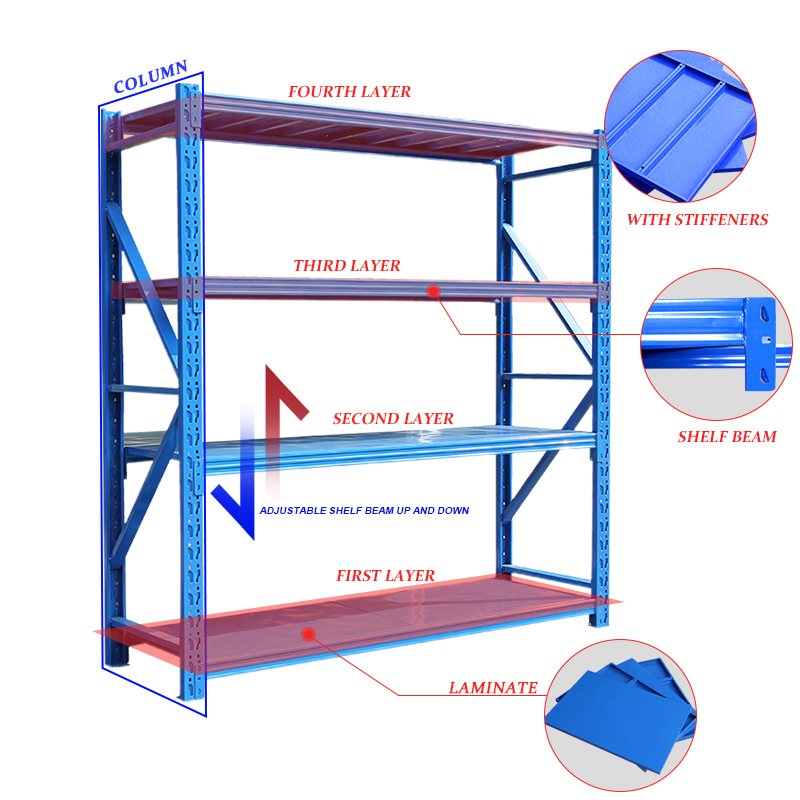

The structure consists of columns, beams, and layer plates. The steel thickness varies depending on the load capacity. For example, our 100KG capacity system uses 0.6mm columns/beams and 0.3mm layers, while the 500KG system utilizes 1.1mm columns/beams and 0.5mm layers.
It is an ideal solution for storing light to medium weight products, large boxes, long pieces, and packages that require open access shelving and regular stock control.
Our long span shelf utilizes interlocking connectors between the columns and beams along with heavy-gauge steel frame support to ensure reliable load-bearing structure and overall stability.
