| Model | Capacity (KG/Layer) | Size (L*W*H) mm | Material Thickness |
|---|---|---|---|
| JS-L1242 | 100KG | 1200*400*2000 | Column/Beam 0.6mm; Layer 0.3mm |
| JS-L1252 | 1200*500*2000 | ||
| JS-L1542 | 1500*400*2000 | ||
| JS-L1552 | 1500*500*2000 | ||
| JS-M1062 | 200KG | 1075*600*2000 | Column/Beam 0.7mm; Layer 0.3mm |
| JS-M1542 | 1500*400*2000 | ||
| JS-M1242 | 1200*400*2000 | ||
| JS-M1262 | 1200*600*2000 | ||
| JS-M1552 | 1500*500*2000 | ||
| JS-M2042 | 2000*400*2000 | ||
| JS-M1562 | 1500*600*2000 | ||
| JS-M2052 | 2000*500*2000 | ||
| JS-M2062 | 2000*600*2000 | ||
| JS-M1562L | 300KG | 1500*600*2000 | Column/Beam 0.9mm; Layer 0.4mm |
| JS-M2062L | 2000*600*2000 | ||
| JS-H2062 | 500KG | 2000*600*2000 | Column/Beam 1.1mm; Layer 0.5mm |
| Layers : | 4 | ||
| Color : | Blue / Orange / Grey-white | ||
| Other size and color can be customized based on the quantity of order. | |||
Cheapest and functional solution for all kinds of storage and low weight products. Designed with lots of different configurations, easy to set heights, distribution and weight levels. This storage system is usually used on the standard dimensions but it can also be adapted to the dimensions that the client requires.
Q1: What are the capacity load options for these shelving systems?
A: We offer light to medium-duty capacities ranging from 100KG, 200KG, 300KG, up to 500KG per layer, allowing you to choose the exact specification needed for your stored materials.
Q2: Can I customize sizes and colors beyond the standard offerings?
A: Yes. While standard colors include Blue, Orange, and Grey-white, other custom sizes and colors can be engineered and manufactured based on the quantity of the order.

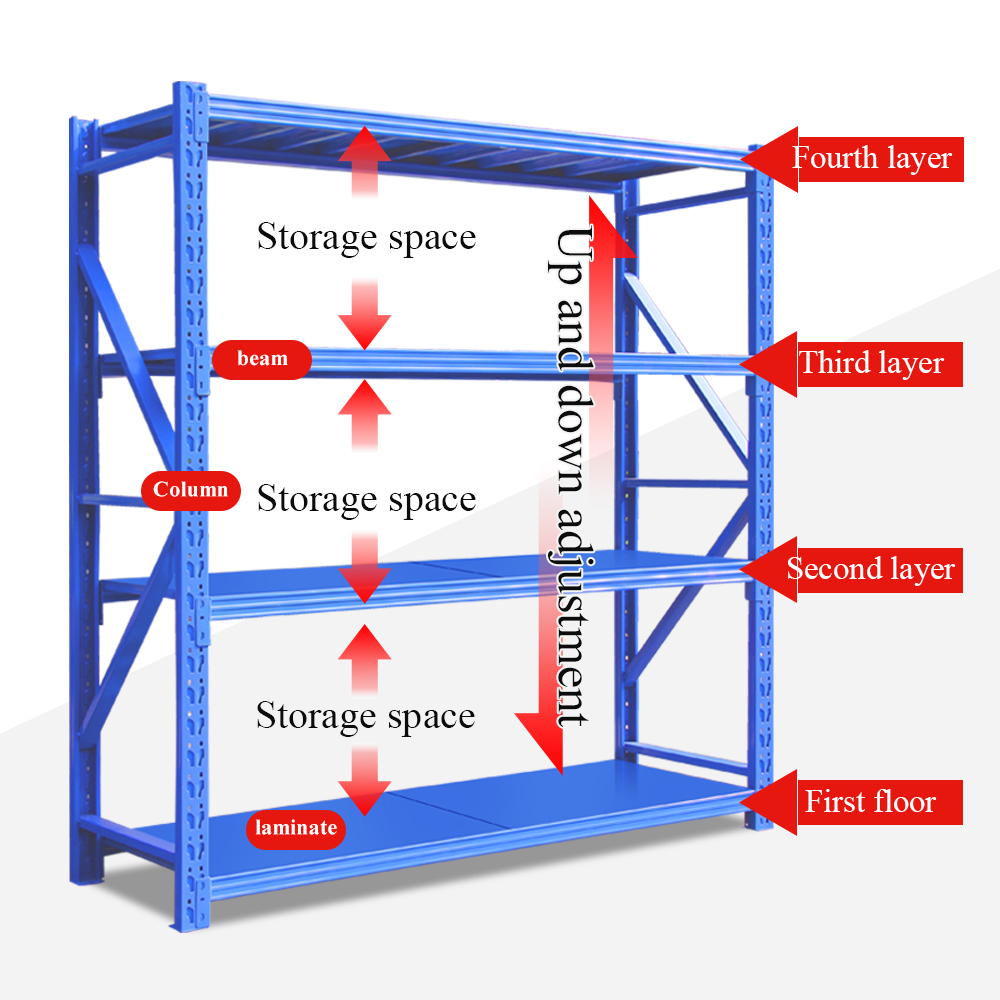

Q3: How durable are the materials used in the columns, beams, and layers?
A: The structures are built with high-quality steel. The material thickness adjusts relative to the load capacity, starting at 0.6mm columns/beams and 0.3mm layers for light loads, up to 1.1mm columns/beams and 0.5mm layers for 500KG heavy-duty loads.
Q4: Is the shelving system difficult to assemble or relocate?
A: Not at all. One of the main benefits of this long span shelving is that it is easy to assemble, disassemble, and transport, saving installation costs and time.
Q5: What are the standard dimensions and configurations?
A: Our standard units come in 4-layer configurations with lengths of 1075mm, 1200mm, 1500mm, or 2000mm, widths of 400mm, 500mm, or 600mm, and a standard height of 2000mm.
Q6: What kinds of goods are best stored using this racking system?
A: It is ideal for storing boxes, big packages, long pieces, and low-weight products. It is highly suited for materials that require open shelving access or resistance to deterioration.
